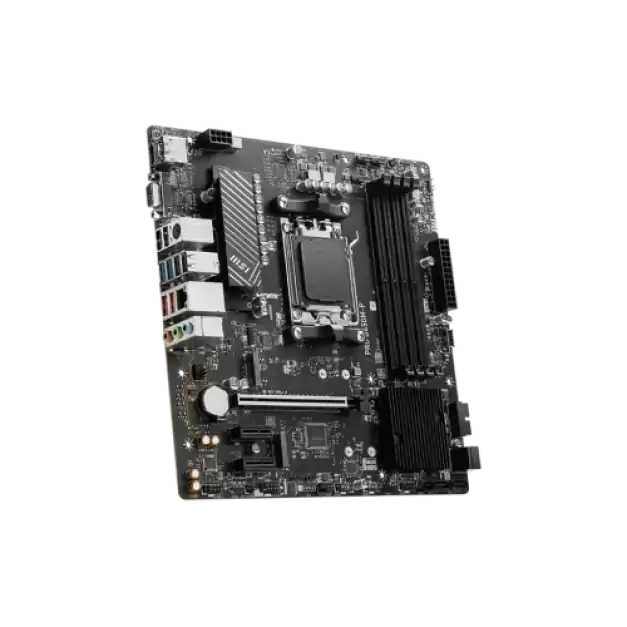

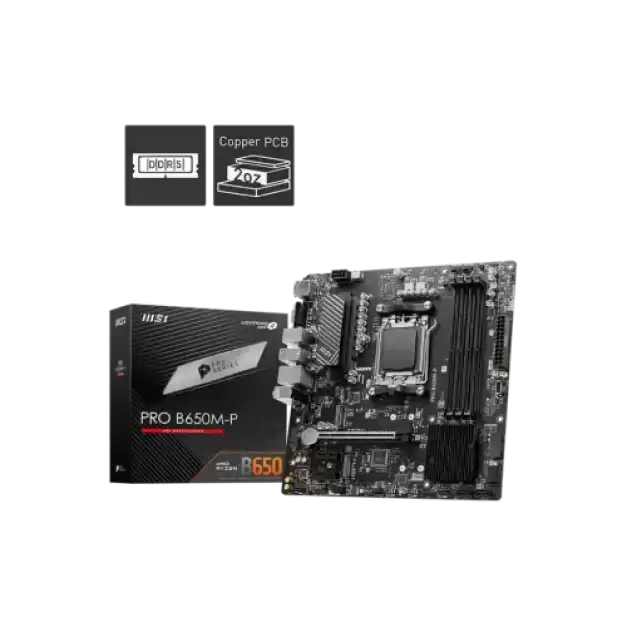

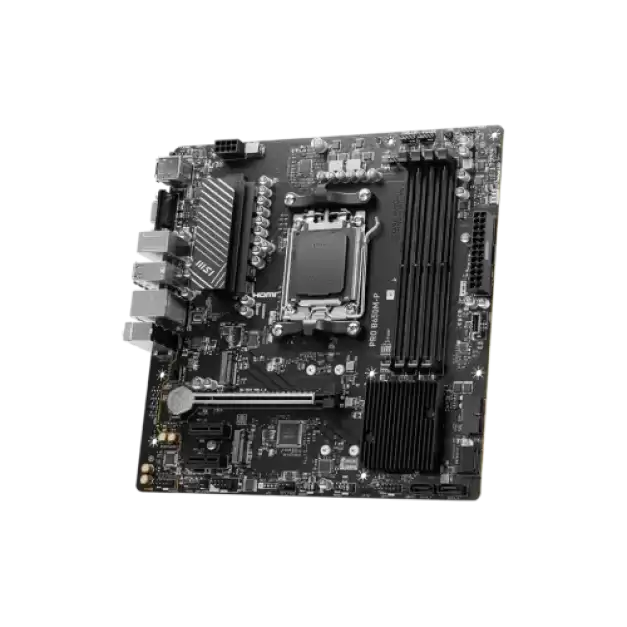

MSI PRO B650M-P DDR5 AMD AM5 mATX Motherboard

PCI	1x PCI-E x16 slot 2x PCI-E x1 slot PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset)

Supported CPU

Supports AMD Ryzen 8000 / 7000 Series Desktop Processors Socket AM5

Chipset

AMD B650

Form Factor

mATX 243.84mmx243.84mm

Type

DDR5

Slot

4 DIMMs

Supported Memory

Memory Support DDR5 7200+(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz Max. overclocking frequency: • 1DPC 1R Max speed up to 7200+ MHz • 1DPC 2R Max speed up to 6000+ MHz • 2DPC 1R Max speed up to 6000+ MHz • 2DPC 2R Max speed up to 5400+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports AMD EXPO

Maximum Memory

192GB

Graphics

Support HDMITM 2.1, maximum resolution of 4K 60Hz* Supports DP 1.4, maximum resolution of 4K 60Hz* Support VGA, maximum resolution of 1920x1200 60Hz*

Manufacturing Warranty

03-year Warranty

Special Features

4x EZ Debug LED

HDMI

1x HDMI

USB (s)

4x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 3.2 Gen1 Type A (Rear) 2x USB 3.2 Gen1 Type A (Front) 2x USB 3.2 Gen2 Type A (Rear) 1x USB 3.2 Gen2 Type C (Front)

LAN Port (s)

Realtek 8125BG 2.5G LAN

Supported Storage

2x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 4x SATA 6G

Audio

1x Front Audio (JAUD) Back Audio connectors

Internal I/O Ports

1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 3x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 2x Addressable V2 RGB LED connector (JARGB_V2) 2x RGB LED connector(JRGB) 4x USB 2.0 ports 2x USB 3.2 Gen1 Type A ports 1x USB 3.2 Gen2 Type C ports

TPM (Trusted Platform Module)

1x TPM pin header(Support TPM 2.0)

VGA (s)

1x VGA

Display Port (s)

1x DisplayPort

RAID	Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices Supports RAID 0 and RAID 1 for M.2 NVMe storage devices

MSI PRO B650M-P DDR5 AMD AM5 mATX Motherboard

The MSI PRO B650M-P DDR5 AMD AM5 mATX Motherboard is a powerhouse of modern computing technology. Built to support AMD Ryzen 8000 & 7000 Series Desktop Processors and DDR5 memory, it ensures compatibility with the latest CPU technology and offers blazing-fast memory speeds of 7200+MHz when overclocked. With features like Core Boost and Memory Boost, this motherboard provides exceptional processing power, stability, and data signal purity. Its 6-layer PCB constructed with 2oz thickened copper enhances durability and reliability. Gaming enthusiasts will appreciate the PCIe 4.0 slots and Lightning Gen 4 x4 M.2 slot for lightning-fast data transfers and support for high-end graphics cards. Professionals and multimedia users will benefit from the upgraded 2.5G LAN, ensuring a secure, stable, and fast network connection. Moreover, the Audio Boost technology delivers studio-grade sound quality for an immersive gaming experience. To protect your VGA cards against bending and EMI, Steel Armor is in place. In essence, the MSI PRO B650M-P motherboard is a versatile and robust platform suitable for gamers, content creators, and professionals alike.

Buy MSI PRO B650M-P DDR5 AMD AM5 mATX Motherboard from Basictech BD

In Bangladesh, you can get original MSI PRO B650M-P DDR5 AMD AM5 mATX Motherboard From Basictech BD. We have a large collection of latest MSI Motherboards  to purchase for your Desktop PC. Order Online Or Visit Now Basictech BD Shop to get yours at lowest price. The MSI PRO B650M-P DDR5 AMD AM5 mATX Motherboard comes with 3 years warranty.
