MSI Motherboard PRO B660M-G DDR4 12th Gen mATX

PCI	1x PCIe 4.0 x16 slot (from CPU) 1x PCIe 3.0 x1 slot (from B660 chipset)

Audio

Realtek ALC897 Codec 7.1-Channel High Definition Audio

Supported CPU

Supports 12th Gen Intel Core Processors, Pentium Gold and Celeron Processors Processor socket LGA1700

Chipset

Intel B660 Chipset

BIOS	BIOS FEATURES 1x 256 Mb flash UEFI AMI BIOS ACPI 6.4, SMBIOS 3.4 Multi-language

Form Factor

M-ATX Form Factor 9.6 in. x 8.7 in. (24.4 cm x 22.0 cm)

Type

DDR4

Slot	2x DDR4 memory slots

Supported Memory

Supports ADL-s 1R 2133/ 2666/ 2933/ 3200 MHz 1 1DPC 1R Max speed up to 4600+ MHz 1DPC 2R Max speed up to 4000+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel Extreme Memory Profile (XMP)

Maximum Memory

support up to 64GB

Graphics

1x VGA port, supports a maximum resolution of 2048x1536 @50Hz, 2048x1280 @60Hz, 1920x1200 @60Hz 1x HDMI 2.1 with HDR port, supports a maximum resolution of 4K 60Hz 1x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz 1/2 (PRO B660M-G DDR4)

Manufacturing Warranty

3 years warranty

HDMI	HDMI (BACK PANEL PORTS)

USB (s)

Intel B660 Chipset 6x USB 3.2 Gen 1 5Gbps ports (4 Type-A ports on the back panel, 2 ports through the internal connector) 2x USB 2.0 Type-A ports on the back panel USB Hub-GL850G 4x USB 2.0 ports available through internal connectors

LAN Port (s)

1x Realtek RTL8125BG 2.5Gbps LAN controller

Supported Storage

4x SATA 6Gb/s ports (From B660 chipset) 1 2x M.2 slots (Key M) M2_1 slot (From CPU) Supports PCIe 4.0 x4 Supports 2242/ 2260/ 2280 storage devices M2_2 slot (From B660 chipset) 1 Supports PCIe 4.0 x4 Supports SATA 6Gb/s Supports 2242/ 2260/ 2280 storage devices Supports Intel Optane Technology SATA7 will be unavailable when installing M.2 SATA SSD in the M2_2 slot.

Audio

Realtek ALC897 Codec 7.1-Channel High Definition Audio

Internal I/O Ports

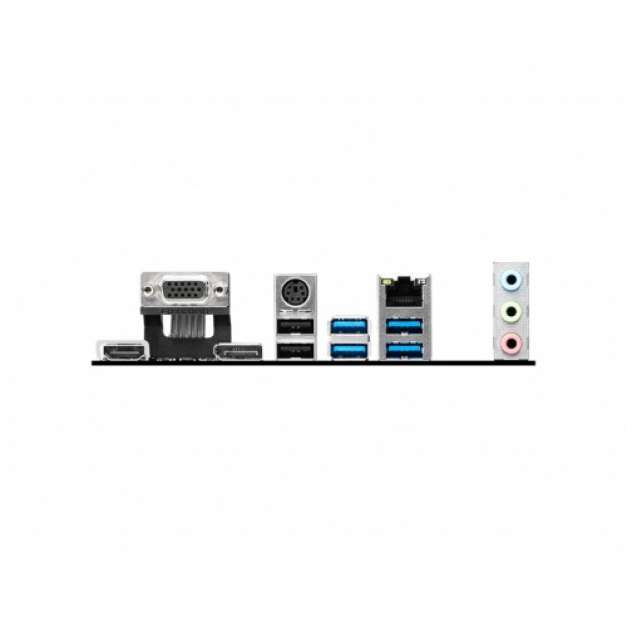

INTERNAL CONNECTORS: 1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 4x SATA 6Gb/s connectors 2x USB 2.0 connector (support additional 4 USB ports) 1x USB 3.2 Gen 1 5Gbps connector (support additional 2 USB ports) 1x 4-pin CPU fan connector 2x 4-pin system fan connectorx 1x Front panel audio connector 2x System panel connectors 1x Serial port connector 1x Chassis Intrusion connector 1x Clear CMOS jumper 1x JRGB 2x JRAINBOW 1x Tuning Controller Connector BACK PANEL CONNECTORS: VGA Keyboard / Mouse LAN port Audio connector HDMI DisplayPort USB 2.0 USB 3.2 Gen 1 5Gbps Type-A

TPM (Trusted Platform Module)

1x TPM module connector

VGA (s)

Yes (BACK PANEL PORTS)

Display Port (s)

DisplayPort (BACK PANEL PORTS)

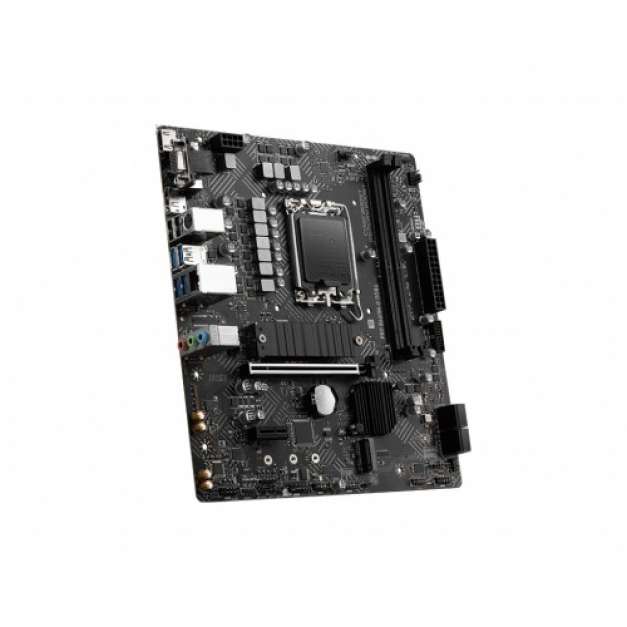

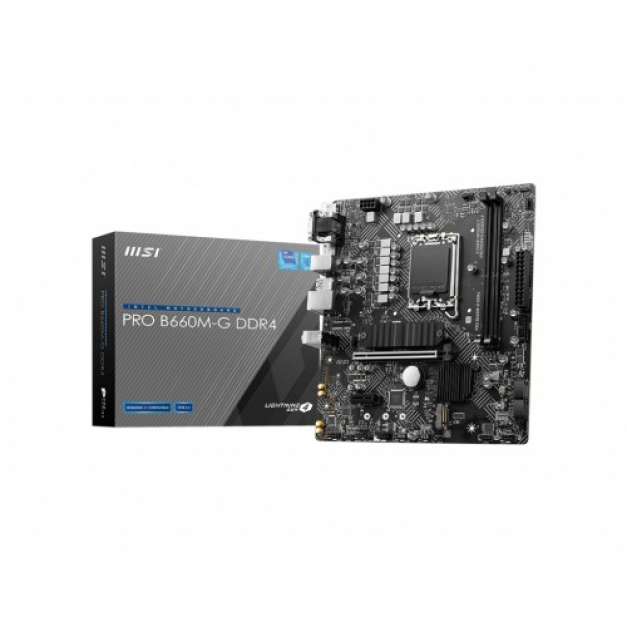

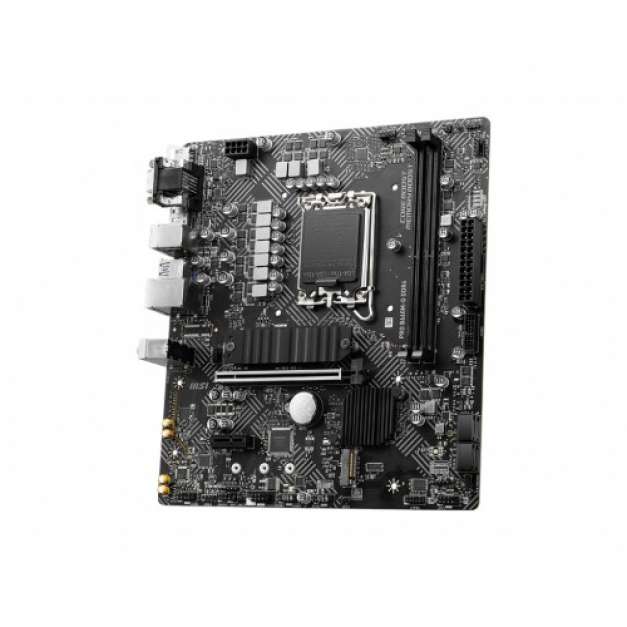

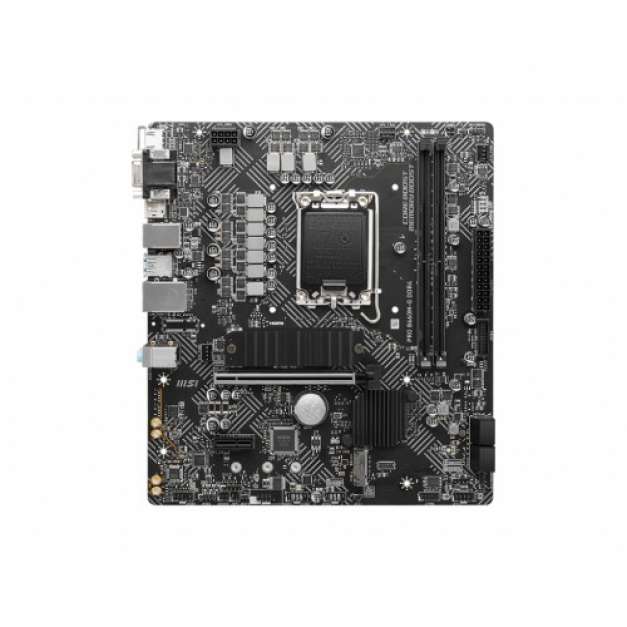

MSI PRO B660M-G DDR4 12th Gen mATX Motherboard

MSI PRO B660M-G DDR4 motherboard supports with 12th Gen Intel Core, Pentium Gold and Celeron processors for LGA 1700 socket, DDR4 Memory, up to 4600+(OC) MHz. This motherboard comes with premium layout and digital power design to support more cores and provide better performance. In thihs bmotherboard, the Advanced technology to deliver pure data signals for the best performance, stability and compatibility. It has PCIe 4.0, Lightning Gen4 x4 M.2 with M.2 Shield Frozr. With 2.5G LAN, This 2.5Gbps LAN provides incredible data transfer speed faster than general Gigabit LAN. This is a premium solution for demanding users. You can Upgraded network solution for professional and multimedia use and also it Delivers a secure, stable and fast network connection. This motherboard comes with Steel Armor, which helps to Protecting VGA cards against bending and EMI for better performance, stability and strength. The latest MSI PRO B660M-G DDR4 motherboard offers 03 year warranty.
