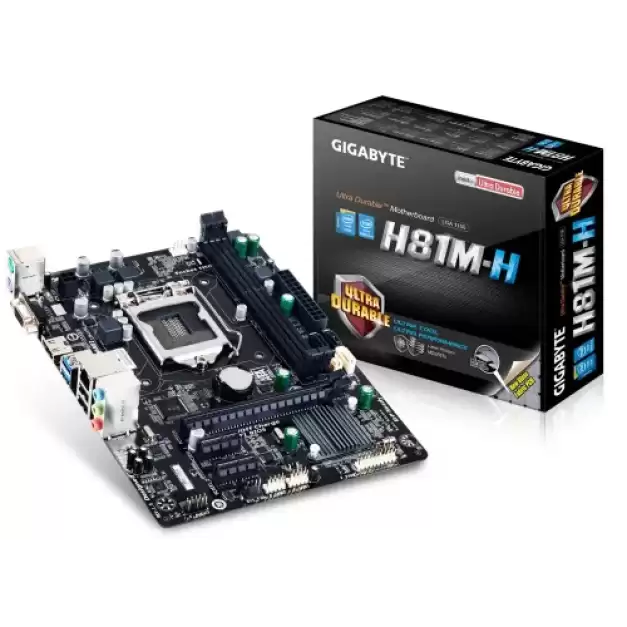

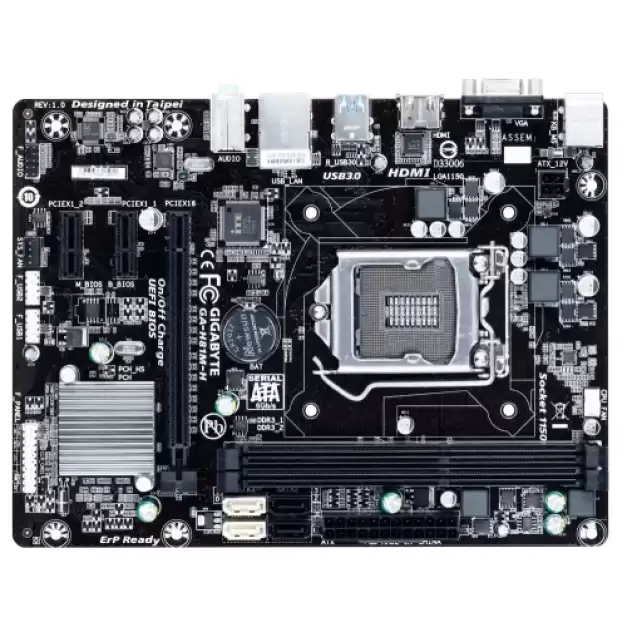

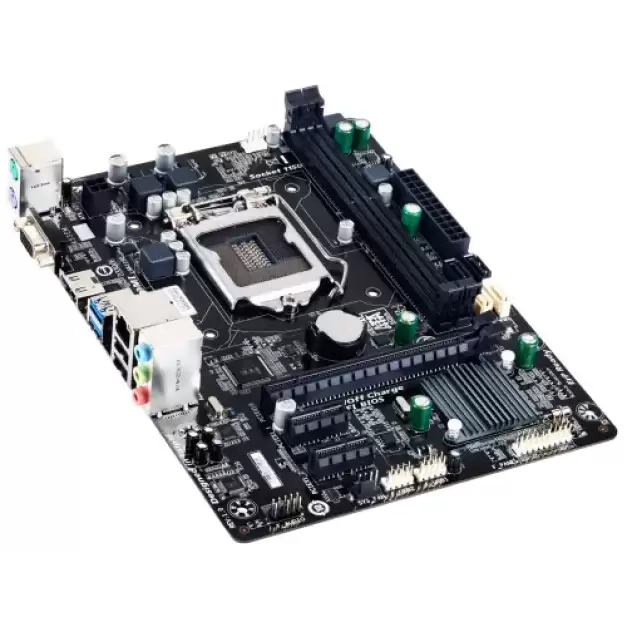

GIGABYTE GA-H81M-H 4th Gen Micro ATX Motherboard

Special Price: 9,100.00৳ Regular Price: 10,100.00৳
Product Code: 6393 Brand:GIGABYTE In Stock
Qty
+ -
Expansion Slots
PCI 1 x PCI Express x16 slot, running at x16 2 x PCI Express x1 slots
Basic Information
Audio Realtek ALC887 codec High Definition Audio 2/4/5.1/7.1-channel
Supported CPU Support for Intel Core i7 processors/Intel Core i5 processors/Intel Core i3 processors/Intel Pentium processors/Intel Celeron processors in the LGA1150 package L3 cache varies with CPU
Chipset Intel H81 Express Chipset
BIOS 1 x 32 Mbit flash Use of licensed AMI EFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor Micro ATX Form Factor; 22.6cm x 17cm
Memory Specifications
Type DDR3
Slot 2 x 1.5V DIMM sockets
Supported Memory Dual channel memory architecture Support for DDR3 1600/1333 MHz memory modules Support for non-ECC memory modules Support for Extreme Memory Profile (XMP) memory modules
Maximum Memory 16 GB
Graphics Specifications
Graphics Integrated Graphics Processor - Intel HD Graphics support: 1 x D-Sub port, supporting a maximum resolution of 1920x1200 1 x HDMI port, supporting a maximum resolution of 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz * Support for HDMI 1.4a version.
Max Shared Memory 1 GB
Warranty
Manufacturing Warranty 3 Years
Others
Special Features Support for Q-Flash Support for Xpress Install Support for APP Center * Available applications in APP Center may differ by motherboard model. Supported functions of each application may also differ depending on motherboard specifications. @BIOS EasyTune EZ Setup USB Blocker Smart TimeLock Smart Recovery 2 Support for ON/OFF Charge
Connector & Ports
HDMI 1 x HDMI
D-Sub (s) 1 x D-Sub

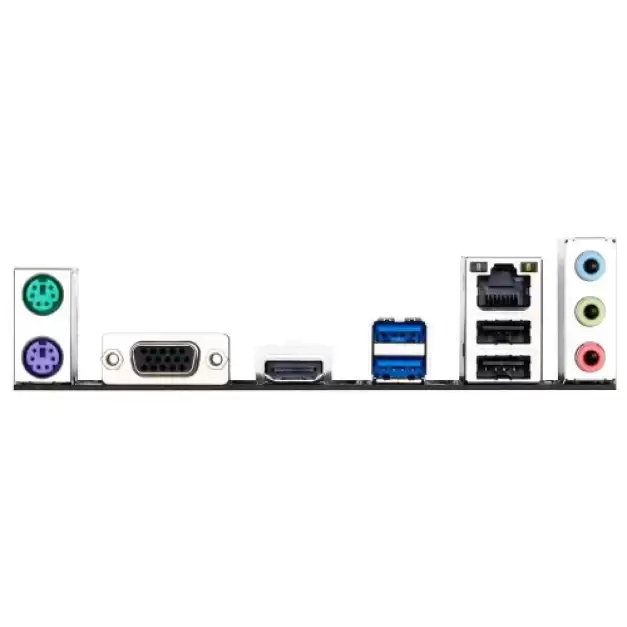

USB (s) Chipset: 2 x USB 3.0/2.0 ports on the back panel 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
LAN Port (s) Realtek GbE LAN chip (10/100/1000 Mbit)
Supported Storage Chipset: 2 x SATA 6Gb/s connectors (SATA3 0/1) 2 x SATA 3Gb/s connectors (SATA2 2/3)
Internal I/O Ports 1 x 24-pin ATX main power connector 1 x 4-pin ATX 12V power connector 2 x SATA 6Gb/s connectors 2 x SATA 3Gb/s connectors 1 x CPU fan header 1 x system fan header 1 x front panel header 1 x front panel audio header 2 x USB 2.0/1.1 headers 1 x Clear CMOS jumper

GIGABYTE GA-H81M-H 4th Gen Micro ATX Motherboard

The GIGABYTE GA-H81M-H Motherboard is a powerful and feature-rich platform designed to support 4th Generation Intel Core processors. It incorporates GIGABYTE's Ultra Durable Technology, ensuring efficient performance and extended motherboard lifespan. The GIGABYTE GA-H81M-H Motherboard boasts a GIGABYTE UEFI BIOS for streamlined configuration, USB 3.0 ports with GIGABYTE 3x USB power for faster charging and data transfer, and GIGABYTE On/Off Charge for convenient USB device charging even when the PC is off. High ESD Protection safeguards both USB and LAN ports, while the inclusion of HDMI and D-SUB ports on the rear panel offers versatile display connectivity options. The use of solid capacitors for CPU VRM design ensures stability and durability. The GIGABYTE GA-H81M-H Motherboard present a unique blend of cutting-edge features, including support for the latest Intel 8 Series platform, offering enhanced performance and power efficiency. With features like Humidity Protection, Power Failure Protection, and Electrostatic Protection, this motherboard is designed to withstand various challenges. The integration of GIGABYTE's LAN Optimizer and EasyTune technologies, along with Smart Fan 2 for optimal cooling, provides efficient management and customization options. The GIGABYTE App Center offers easy access to a range of GIGABYTE apps for seamless user experience, and the BIOS app allows BIOS updates from within Windows.

Buy GIGABYTE GA-H81M-H 4th Gen Micro ATX Motherboard from basictech BD

In Bangladesh, you can get original GIGABYTE GA-H81M-H 4th Gen Micro ATX Motherboard From Basictech BD. We have a large collection of latest GIGABYTE Motherboard  to purchase for your Desktop PC. Order Online Or Visit Now Basictech BD Shop to get yours at lowest price. The GIGABYTE GA-H81M-H 4th Gen Micro ATX Motherboard comes with 3 years warranty.
