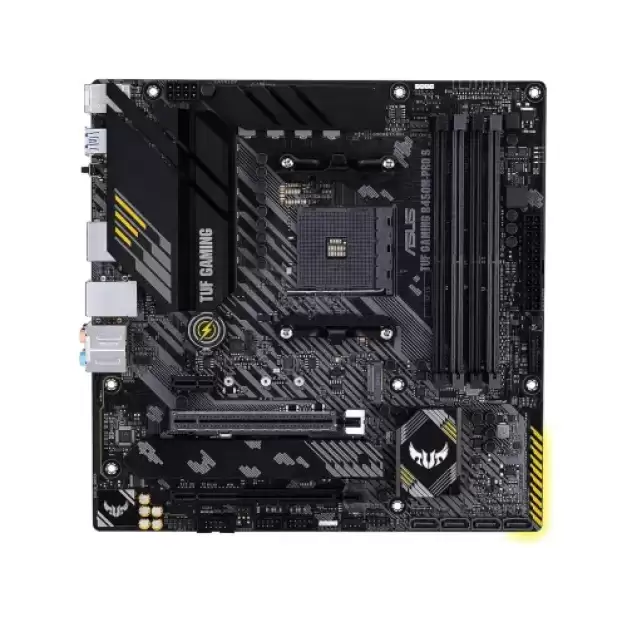

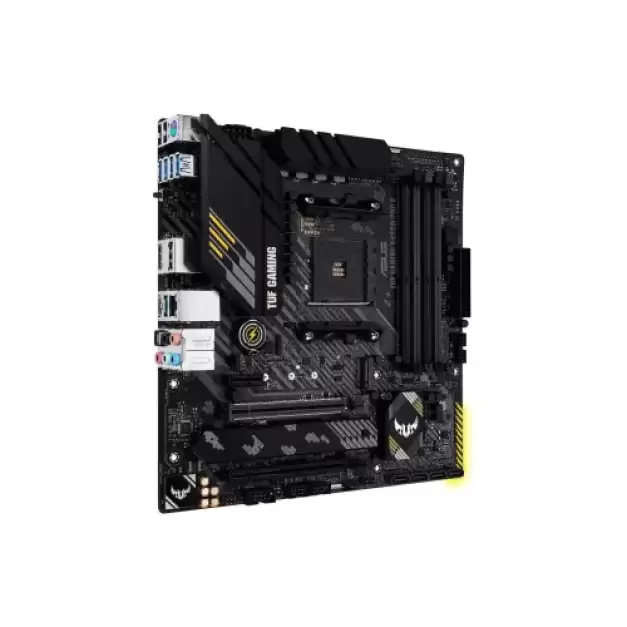

Asus TUF Gaming B450M-Pro S AM4 mATX Motherboard (China Version)

PCI

3rd/2nd/1st Gen AMD Ryzen Processors 1 x PCIe 3.0/2.0 x16 (x16 mode) 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors 1 x PCIe 3.0/2.0 x16 (x8 mode) Athlon™ with Radeon Vega Graphics Processors 1 x PCIe 3.0/2.0 x16 (max at x4 mode) AMD B450 chipset 1 x PCIe 2.0 x16 (x4 mode) 1 x PCIe 2.0 x1

Audio

Realtek ALC S1200A 7.1 Surround Sound High Definition Audio CODEC - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback Audio Feature : - Exclusive DTS Custom for GAMING Headsets. - Optical S/PDIF out port(s) at back panel - Audio cover - Audio Shielding - Dedicated audio PCB layers - Premium Japanese audio capacitors

Supported CPU

AMD AM4 Socket for AMD Ryzen 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3rd/2nd/1st Gen AMD Ryzen/ 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics/ Athlon with Radeon™ Vega Graphics Processors

Chipset

AMD B450

BIOS	256 Mb Flash ROM, UEFI AMI BIOS

Form Factor

mATX Form Factor 9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm )

Type

DDR4

Slot

4 x DIMM

Supported Memory

4400(O.C)/3533(O.C)/3466(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz Un-buffered Memory Dual Channel Memory Architecture ECC Memory (ECC mode) support varies by CPU

Maximum Memory

Max. 128GB

Graphics

Integrated Graphics in the 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics/ Athlon with Radeon Vega Graphics Processors 1 x DisplayPort 1.2 1 x HDMI 2.0b

Manufacturing Warranty

03-Year Warranty

Special Features

ASUS TUF PROTECTION - ASUS DIGI+ VRM (Digital power design with DrMOS) - ASUS Enhanced DRAM Overcurrent Protection - ASUS ESD Guards - TUF LANGuard - ASUS Overvoltage Protection - ASUS SafeSlot - ASUS Stainless-Steel Back I/O ASUS Q-Design - ASUS Q-DIMM - ASUS Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - ASUS Q-Slot ASUS Thermal Solution - Aluminum heatsink design ASUS EZ DIY - BIOS FlashBack button - BIOS FlashBack LED - ProCool AURA Sync - AURA RGB headers

HDMI

1 x HDMI

USB (s)

Rear USB Port ( Total 8 ) 2 x USB 3.2 Gen 2 port(s)(1 x Type-A +1 x USB Type-C®) 4 x USB 3.2 Gen 1 port(s)(4 x Type-A) 2 x USB 2.0 port(s)(2 x Type-A) Front USB Port ( Total 6 ) 2 x USB 3.2 Gen 1 port(s)(2 x Type-A) 4 x USB 2.0 port(s)(4 x Type-A)

LAN Port (s)

Realtek RTL8125B 2.5Gb Ethernet TUF LANGuard

Supported Storage

Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports 3rd/2nd/1st Gen AMD Ryzen/ 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics : 1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280 (PCI-E 3.0 x4 and SATA modes) storage devices support Athlon with Radeon Vega Graphics Processors : 1 x M.2_1 socket 3, with M key, type 2242/2260/2280 storage devices support (SATA mode) 3rd/2nd/1st Gen AMD Ryzen/ 2nd and 1st Gen AMD Ryzen with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors : AMD B450 chipset : 1 x M.2_2 socket 3, with M key, type 2242/2260/2280/22110 storage devices support(PCI-E 2.0 x4)*2 4 x SATA 6Gb/s port(s),

Audio

5 x Audio jack(s)

Internal I/O Ports

1 x CPU Fan connector(s) 1 x CPU OPT Fan connector(s) 2 x Chassis Fan connector(s) 2 x Aura RGB Strip Headers 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode) 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support(PCIE 2.0 x4) 1 x SPI TPM header 4 x SATA 6Gb/s connector(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin EATX 12V Power connectors 1 x Front panel audio connector(s) (AAFP) 1 x Clear CMOS jumper(s) 1 x System panel connector 1 x COM port header 1 x Speaker connector

Display Port (s)

1 x DisplayPort

RAID	Support Raid 0, 1, 10

Asus TUF Gaming B450M-Pro S AM4 Motherboard (China Version)

The Asus TUF Gaming B450M-Pro S Motherboards have been particularly engineered and tested to survive and flourish in environments where other boards would fail. This motherboard provides rock-solid performance with consistent gaming stability, thanks to military-grade components, an enhanced power solution, and a complete collection of cooling choices. When you build with a TUF Gaming motherboard, you also get the TUF Gaming Alliance, which is an ASUS partnership with trusted industry partners that assures quicker building, the greatest compatibility, and complementary aesthetics from components to case. With upgraded power delivery and comprehensive cooling options to fuel the latest AMD Ryzen CPUs, plus support for faster memory and storage, TUF GAMING B450M-PRO S is the perfect foundation for your next high-core-count battle rig. The onboard VRM of TUF GAMING B450M-PRO S utilizes 8+2 DrMOS power stages that combine high-side and low-side MOSFETs and drivers into a single package, delivering the power and efficiency that 3rd Gen AMD Ryzen Processors demand. The Asus TUF GAMING B450M-PRO S provides a complete, high-performance gaming package with a long list of features to improve your experience, including ultrafast networking for smoother online gameplay, pristine audio with positional cues for FPS gaming, and onboard RGB lighting that syncs with attached accessories to help you create a personalized gaming atmosphere.

Buy Asus TUF Gaming B450M-Pro S AM4 mATX Motherboard (China Version) from the best Motherboard Shop in BD

In Bangladesh, you can get the original Asus TUF Gaming B450M-Pro S AM4 mATX Motherboard (China Version) From Basictech Bd. We have a large collection of the latest Asus Motherboard to purchase for your Desktop Pc. Order Online Or Visit Now Basictech BD Shop to get yours at the lowest price. The Asus TUF Gaming B450M-Pro S AM4 mATX Motherboard comes with 3 years warranty.
