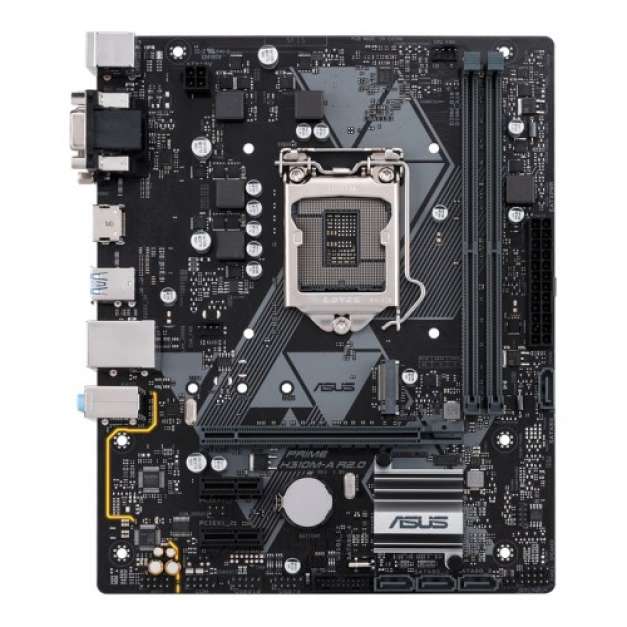

Asus PRIME H310M-AT R2.0 9th and 8th Gen M ATX Motherboard

PCI	1 x PCIe 3.0/2.0 x16 (x16 mode, gray) 2 x PCIe 2.0 x1

Audio

Realtek ALC887 8-Channel High Definition Audio CODEC - Supports: Jack-detection, Front Panel Jack-retasking Audio Feature: - LED-illuminated design - Brighten up your build with the gorgeous illuminated audio trace path. - Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference - Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals - Premium Japanese audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity * Choose the chassis with HD audio module in front panel to support 8-channel audio output.

Supported CPU

Intel Socket 1151 9th / 8th Gen Intel Core, Pentium Gold and Celeron Processors Supports Intel 14 nm CPU Supports Intel Turbo Boost Technology 2.0

Chipset

Intel H310

BIOS	128 Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.1, ACPI 6.1, MultilanguageBIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F6 Qfan Control, F3 MyFavorites, Last Modified log, F12 PrintScreen, and ASUS DRAM SPD (SerialPresence Detect) memory information

Form Factor

mATX Form Factor 8.9 inch x 7.3 inch ( 22.6 cm x 18.5 cm )

Type

DDR4

Slot

2 x DIMM

Supported Memory

2666/ 2400/ 2133 MHz Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP)

Maximum Memory

Max. 32GB

Graphics

Integrated Graphics Processor- Intel HD Graphics support Multi-VGA output support : HDMI/DVI-D/D-Sub ports - Supports HDMI 1.4b with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz - Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz - Supports D-sub with max. resolution 1920 x 1200 @ 60 Hz Supports Intel InTru 3D, Quick Sync Video, Clear Video HD Technology, Insider

Max Shared Memory

1024 MB

Manufacturing Warranty

03 years

Special Features

ASUS 5X Protection III : - ASUS SafeSlot Core: Fortified PCIe Slot prevents damage - ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges! - ASUS Overvoltage Protection: World-class circuit-protecting power design - ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability! - ASUS DIGI+ VRM: Premium components provide better power efficiency ASUS OptiMem： - Optimem (Improved DDR4 stability) ASUS EPU : - EPU ASUS Exclusive Features : - AI Suite 3 - Ai Charger - PC Cleaner - File Transfer ASUS Quiet Thermal Solution : - Stylish Fanless Design Heat-sink solution - ASUS Fan Xpert ASUS EZ DIY : - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode ASUS Q-Design : - ASUS Q-DIMM M.2 Onboard(The latest transfer technologies with up to 10Gb/s data transfer speeds)

HDMI

1 x HDMI

D-Sub (s)

1 X D-sub

USB (s)

Intel H310 Chipset : 4 x USB 3.1 Gen 1 up to 5Gbps port(s) (2 at back panel, blue, Type-A, 2 at mid-board) Intel H310 Chipset : 6 x USB 2.0/1.1 port(s) (2 at back panel, , 4 at mid-board)

LAN Port (s)

Realtek RTL8111H, 1 x Gigabit LAN

Supported Storage

Intel H310 Chipset : 1 x M.2 Socket 3, , with M Key, type 2242/2260/2280 storage devices support (both SATA & x2 PCIE mode)*1 4 x SATA 6Gb/s port(s), gray,

Audio

3 x Audio jack(s)

Internal I/O Ports

1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) (19-pin) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (both SATA & x2 PCIE mode) 1 x COM port(s) connector(s) 4 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) (1 x 4 -pin) 1 x Chassis Fan connector(s) (1 x 4 -pin) 1 x S/PDIF out header(s) 1 x 24-pin EATX Power connector(s) 1 x 4-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x Clear CMOS jumper(s) 1 x System panel connector 1 x Speaker connector

DVI-D (s)

1 x DVI-D

Asus PRIME H310M-AT R2.0 9th and 8th Gen mATX Motherboard

The Asus PRIME H310M-AT R2.0 Motherboard is compatible with Intel Socket 1151 for 9th/8th Gen Core, Pentium Gold & Celeron Processors. It provides the solid foundation needed for your first build, plus flexibility to grow with your ambitions. It features the most comprehensive cooling controls ever, configurable via ASUS Fan Xpert software or the UEFI BIOS. The UEFI BIOS is an early waypoint on any PC-building journey, and Asus PRIME H310M-AT R2.0 Motherboard has one of the best in the business. Q-Fan Control Can configure the fan's operating speed manually or use the easy pre-configured fan profiles to select Standard, Silent, Turbo, or Full Speed modes, plus an automatic switch to full speed if the temperature hits 75°C. It offers future-proof connectivity. The USB 3.1 Gen 1 is right where you need it, with two super-speed headers for the front panel. Experience data-transfer speeds up to 10X faster than USB 2.0 with instant plug-and-play connectivity, and avoid back-breaking contortions in the hunt for hard-to-reach rear ports. The Asus PRIME H310M-AT R2.0 Motherboard comes with 3 years of warranty.
