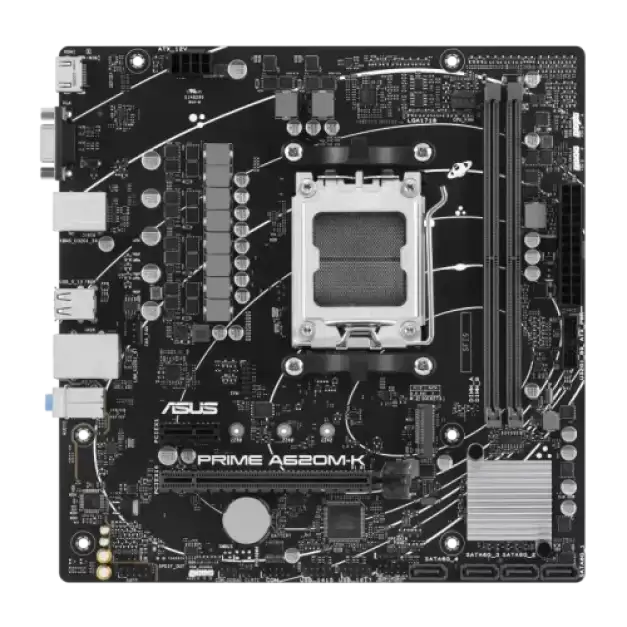

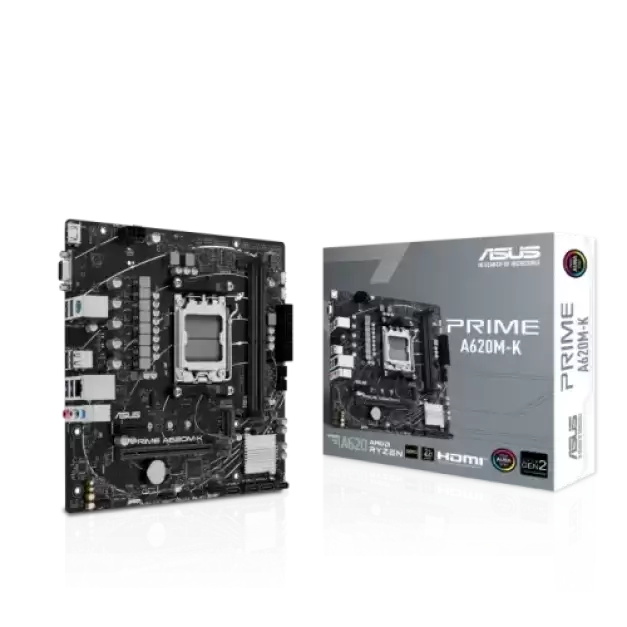

Asus PRIME A620M-K AM5 mATX Motherboard

PCI	AMD Ryzen 9000 & 7000 Series Desktop Processors* 1 x PCIe 4.0 x16 slot (supports x16 mode) AMD Ryzen 8000 Series Desktop Processors 1 x PCIe 4.0 x16 slot (supports x8/x4 mode)** AMD A620 Chipset 1 x PCIe 3.0 x1 slot

Audio

Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers

Supported CPU

AMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors

Chipset

AMD A620 Chipset

BIOS	256 Mb Flash ROM, UEFI AMI BIOS

Form Factor

micro-ATX Form Factor 8.9 inch x 8.7 inch (22.6 cm x 22.1 cm)

Type

DDR5

Slot	2 x DIMM slots

Supported Memory

7200+(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600(OC)/5400(OC)/5200/5000/4800 Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports AMD Extended Profiles for Overclocking (EXPO)

Maximum Memory

Max. 96GB

Graphics

1 x VGA port 1 x HDMI port

Manufacturing Warranty

3 Years Warranty

Special Features

ASUS 5X PROTECTION III - DIGI+ VRM - LANGuard - Overvoltage Protection - SafeSlot Core - Stainless-Steel Back I/O ASUS Q-Design - Q-DIMM - Q-LED Core - Q-Slot ASUS Thermal Solution - Aluminum heatsink design Aura Sync - Aura RGB header - Addressable Gen 2 headers

Bundled Software

ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync - Fan Xpert - Power Saving - Two-Way AI Noise Cancellation AI Suite 3 - TurboV EVO - DIGI+ VRM - PC Cleaner ASUS CPU-Z Norton 360 Deluxe (60 Days Free Trial) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode

HDMI

1x HDMI

USB (s)

Rear USB (Total 6 ports) 4 x USB 3.2 Gen 1 (5G) ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB (Total 6 ports) 1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports

LAN Port (s)

1 x Realtek 1Gb Ethernet

Supported Storage

Total supports 1 x M.2 slot and 4 x SATA 6Gb/s ports* AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) AMD A620 Chipset 4 x SATA 6Gb/s ports * AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1/10.

Audio

3 x Audio jacks

Internal I/O Ports

Internal I/O Connectors Fan and Cooling-related 1 x 4-pin CPU Fan header 1 x 4-pin Chassis Fan header Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 1 x M.2 slot (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 2 x Addressable Gen 2 headers 1 x Aura RGB header 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x S/PDIF Out header 1 x Speaker header 1 x 10-1 pin System Panel header Back Panel I/O Ports 4 x USB 3.2 Gen 1 (5G) ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x VGA port 1 x HDMI port 1 x Realtek 1Gb Ethernet port 3 x Audio jacks 1 x PS/2 Keyboard/Mouse combo port

TPM (Trusted Platform Module)

1 x SPI TPM header (14-1pin)

VGA (s)

1 x VGA port

Asus PRIME A620M-K AM5 mATX Motherboard

The Asus PRIME A620M-K AM5 mATX Motherboard is designed with the future of AI computing in mind, offering the power and connectivity required for demanding applications. It features an AM5 socket, making it compatible with AMD Ryzen Desktop Processors, ensuring support for the latest generation of processors. The motherboard boasts ultrafast connectivity options, including PCIe 4.0 for high-speed data transfer, a 64Gbps M.2 slot for rapid storage solutions, Realtek 1Gb Ethernet for reliable networking, and USB 3.2 Gen 1 Type-A for versatile peripheral connectivity. To keep your system running optimally, the motherboard includes comprehensive cooling solutions with a PCH heatsink and Fan Xpert technology. Additionally, it features Aura Sync RGB lighting, with onboard Addressable Gen 2 headers and an Aura RGB header, allowing for seamless synchronization of RGB LED strips with other Aura Sync-capable hardware. The Asus PRIME A620M-K also enhances communication quality with its two-way AI noise cancelation, which reduces background noise from both the microphone and audio output, ensuring crystal-clear communication during gaming sessions or video conferences.

Buy Asus PRIME B650M-A II AM5 mATX Motherboard from Basictech BD

In Bangladesh, you can get original Asus PRIME B650M-A II AM5 mATX Motherboard FromBasictech BD. We have a large collection of the latest Asus Motherboard  to purchase for your Desktop PC. Order Online Or Visit Now Basictech BD Shop to get yours at the lowest price. The Asus PRIME B650M-A II AM5 mATX Motherboard has 3 years of warranty.
