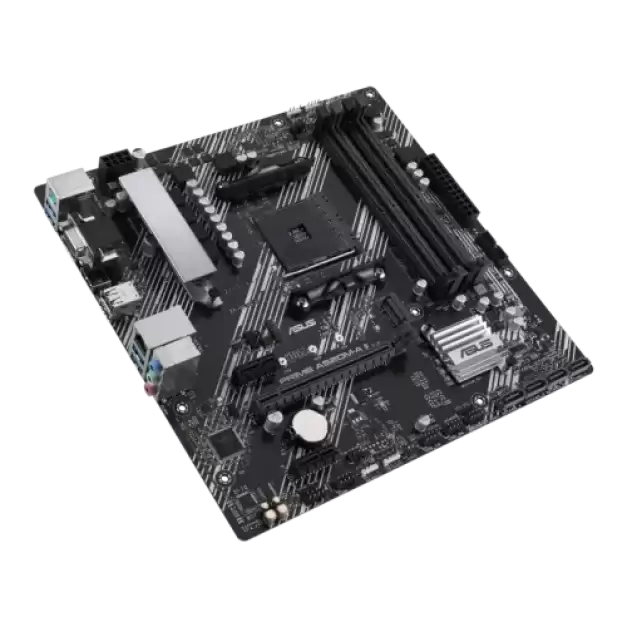

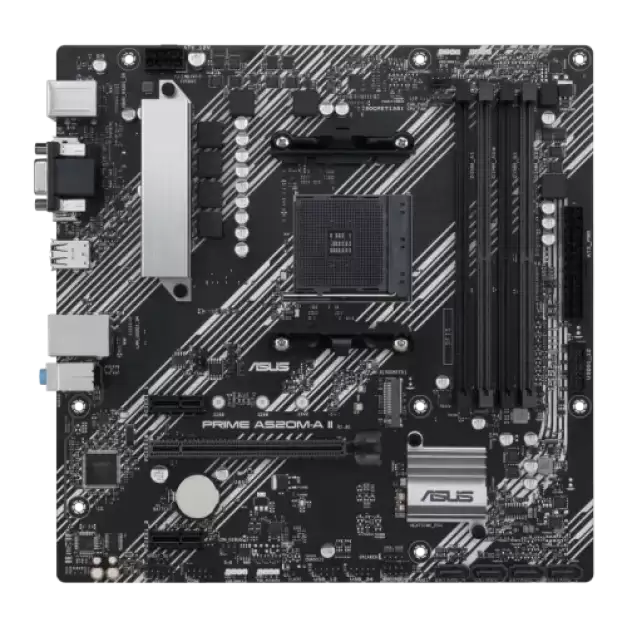

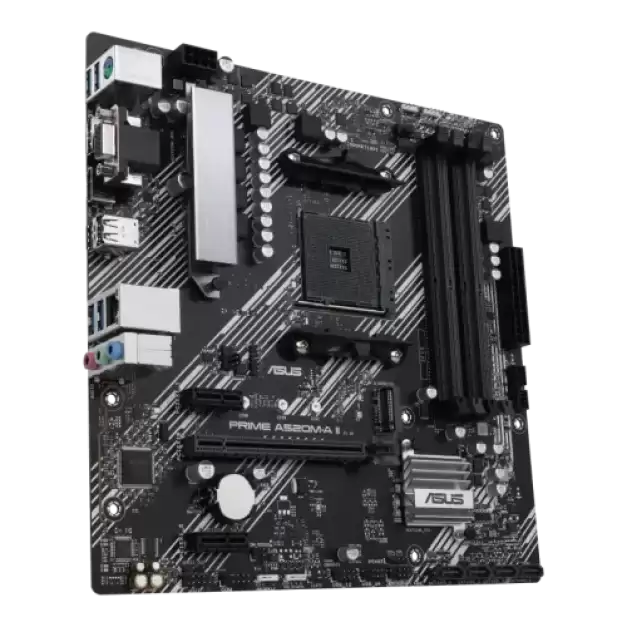

Asus PRIME A520M-A II AM4 micro ATX Motherboard

PCI	AMD Ryzen 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors 1 x PCIe 3.0 x16 slot (supports x16 mode) AMD A520 Chipset 2 x PCIe 3.0 x1 slots

M.2 Socket

Supports 1 x M.2 slot and 4 x SATA 6Gb/s ports

Audio

Realtek ALC887/897 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback" Audio Features - Audio Shielding - Premium Japanese audio capacitors - Dedicated audio PCB layers

Supported CPU

AMD Ryzen 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors

Chipset

A520

BIOS	128 Mb Flash ROM, UEFI AMI BIOS

Form Factor

microATX 24.4cm x 24.4cm

Type	Dual Channel DDR4 Memory Technology

Slot

2 x DIMM

Supported Memory

4866(OC)/ 4800(OC)/ 4600(OC)/ 4466(OC)/ 4400(OC)/ 4266(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3333(OC)/ 3200/ 3000/ 2800/ 2666/ 2400/ 2133 MHz, Un-buffered Memory

Maximum Memory

128GB

Graphics

Graphics specifications may vary between CPU types

Manufacturing Warranty

03-Year Warranty

Special Features

ASUS 5X PROTECTION III - DIGI+ VRM - LANGuard - Overvoltage Protection - SafeSlot Core - Stainless-Steel Back I/O ASUS Q-Design - ASUS Q-DIMM - ASUS Q-Slot ASUS Thermal Solution - VRM heatsink design AURA Sync - AURA RGB headers - Addressable Gen 2 RGB headers

Bundled Software

ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync AI Suite 3 - Performance And Power Saving Utility TurboV EVO EPU Digi+ VRM Fan Xpert 2+ - EZ update ASUS CPU-Z AI Charger DAEMON Tools Norton Anti-virus software (Free Trial version) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3

HDMI	1 x HDMITM port

D-Sub (s)

1 x D-Sub

USB (s)

Rear USB: Total 6 ports 4 x USB 3.2 Gen 1 ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB: Total 6 ports 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports

LAN Port (s)

1 x Realtek 1Gb Ethernet ASUS LANGuard

Supported Storage

AMD Ryzen 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes) AMD A520 Chipset 4 x SATA 6Gb/s ports Support Raid 0, 1, 10

Audio

3 x Audio jacks Back Panel 1 x Front Panel Audio header (AAFP)

Internal I/O Ports

Fan and cooling related 1 x 4-pin CPU Fan header 2 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 1 x M.2 slot (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports Miscellaneous 2 x AURA Addressable Gen 2 header 2 x AURA RGB headers 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x S/PDIF Out header 1 x Speaker header 1 x 10-1 pin System Panel header

TPM (Trusted Platform Module)

1 x SPI TPM header

Display Port (s)

1 x DisplayPort

Asus PRIME A520M-A II AM4 micro ATX Motherboard

The Asus PRIME A520M-A II is a micro ATX motherboard designed for the AMD A520 chipset, specifically for Ryzen AM4 processors. It features a range of connectivity options and support for various components to meet the needs of both daily users and DIY PC builders. The motherboard supports AMD AM4 socket processors, including the Ryzen 5000 Series, 4000 G-Series, and 3000 Series desktop processors. This provides users with a wide range of options when it comes to choosing a compatible CPU. To ensure stable performance and prevent overheating, the Asus PRIME A520M-A II incorporates comprehensive cooling features. These include a VRM heatsink, PCH heatsink, and Fan Xpert 2+ technology, which helps to optimize fan speeds and keep the system cool during intense usage. The motherboard offers an M.2 slot, which supports high-speed NVMe storage for faster data transfer. It also includes 1 Gb Ethernet for reliable network connectivity and USB 3.2 Gen 1 Type-A ports for fast data transfer with compatible devices. The Asus PRIME A520M-A II is its supports for Aura Sync RGB lighting. The motherboard includes onboard RGB headers and addressable Gen 2 headers, allowing users to connect RGB LED strips and synchronize the lighting effects with other Aura Sync-capable hardware. The Asus PRIME A520M-A II is a well-engineered motherboard that provides a solid foundation for building a Ryzen-based system. With its power design, cooling solutions, and performance tuning options, it offers a range of features to enhance the overall computing experience.

Buy Asus PRIME A520M-A II AM4 micro ATX Motherboard from the best Motherboard Shop in BD

In Bangladesh, you can get the original Asus PRIME A520M-A II AM4 micro ATX Motherboard  From Basictech BD . We have a large collection of the latest Asus Motherboard to purchase. Order Online Or Visit Now Basictech BD Shop to get yours at the lowest price. The Asus PRIME A520M-A II AM4 micro ATX Motherboard comes with a 03-year warranty.
